Plan C1277A

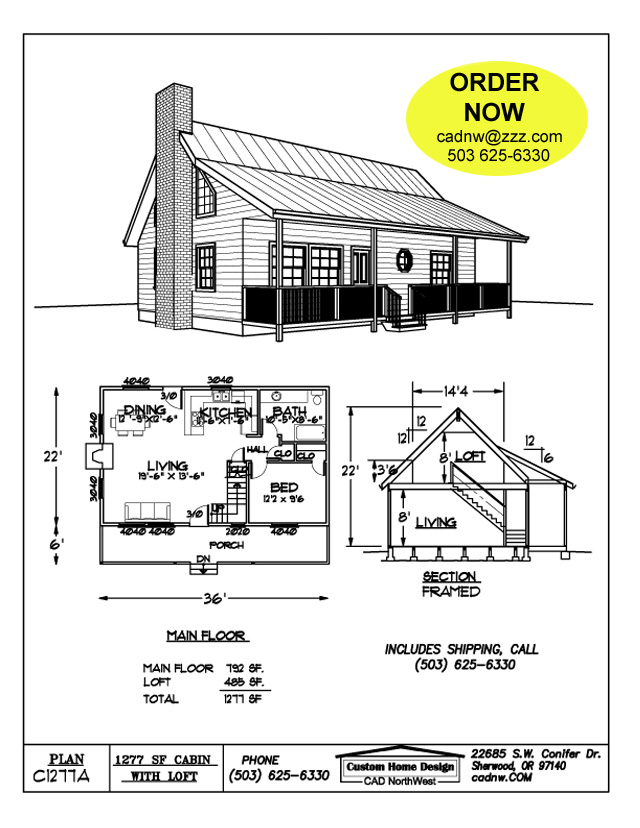

This 36' by 22' Cabin with sleeping loft is compact but is packed with extra features. Access to the main floor is provided by a front door on a sheltered front porch. A door off the dining area leads to the back yard. A stairway leads to a spacious 478 sq. ft. open loft. Twin windows on the sides of the loft provide natural light. This is a great open living area plan with a complete roomy kitchen
These plans include:
- Roof specifications and Details
- Elevation drawings
- Cross sections
- Connection details
- Two types of footing designs
- Bracing details
- Foundation and floor plans
- Plumbing and Electrical
- Materials list
Specifications:
Walls - 2X6 studs @ 16 O.C.
Roof - 12/12 pitch, framed roof
Design Snow Load - 50#/S.F. live roof load
Ceiling Height - 9
Size - 36' wide X 22' long
Footing Size - 12" wide X 6" tall
Overall Height - 22'
Walls - 2X6 studs @ 16 O.C.
Roof - 12/12 pitch, framed roof
Design Snow Load - 50#/S.F. live roof load
Ceiling Height - 9
Size - 36' wide X 22' long
Footing Size - 12" wide X 6" tall
Overall Height - 22'
$339.00
includes Emailing of plans
includes Emailing of plans
