Plan C1098A

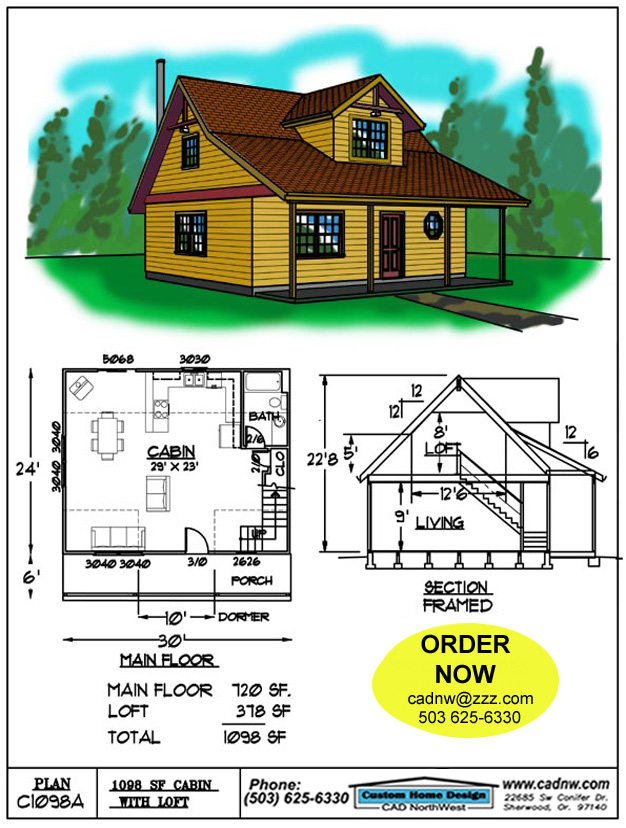

This 30' by 24' Cabin with sleeping loft is compact but is packed with extra features. Access to the main floor is provided by a front door on a sheltered front porch. A sliding glass door in the rear leads to the back yard. A stairway leads to a spacious 378 sq. ft. open loft. Twin windows the sides of the loft and two more in the dormer provide natural light. This is a great open living area plan with a complete roomy kitchen bath and wood stove. This would be a fun place to escape from the city traffic and just relax.
- Roof specifications and Details
- Elevation drawings
- Cross sections
- Connection details
- Two types of footing designs
- Bracing details
- Foundation and floor plans
- Plumbing and Electrical
- Materials list
Walls - 2X6 studs @ 16 O.C.
Roof - 12/12 pitch, framed roof
Design Snow Load - 50#/S.F. live roof load
Ceiling Height - 9
Size - 30' wide X 24' long
Footing Size - 12" wide X 6" tall
Overall Height - 22'-8''
includes Emailing of plans
